Whynter ARC-122DS 12,000 BTU Dual Hose Portable Air Conditioner with Dehumidifier & Fan – Elite Series Cools Up to 400 sq. ft. (Gray)

ASHRAE BTU - 12,000 BTU

SACC BTU - 7,000 BTU

Color - Silver

Coverage Sq. Ft. - 400 sq. ft.

Dehumidifying Capacity - 82 pints/day

Exhaust Hose Length - Max. 60"

Replacement Window Kit - ARC-WK-DUALN

Fan Speed - 3 speed

Filter Type - Carbon air filter and washable pre-filter

Heat Mode - No

Hose System - Dual Hose

Louver Type - 2-way directional air louvers

Maximum Power Consumption - 1200W / 10.5A

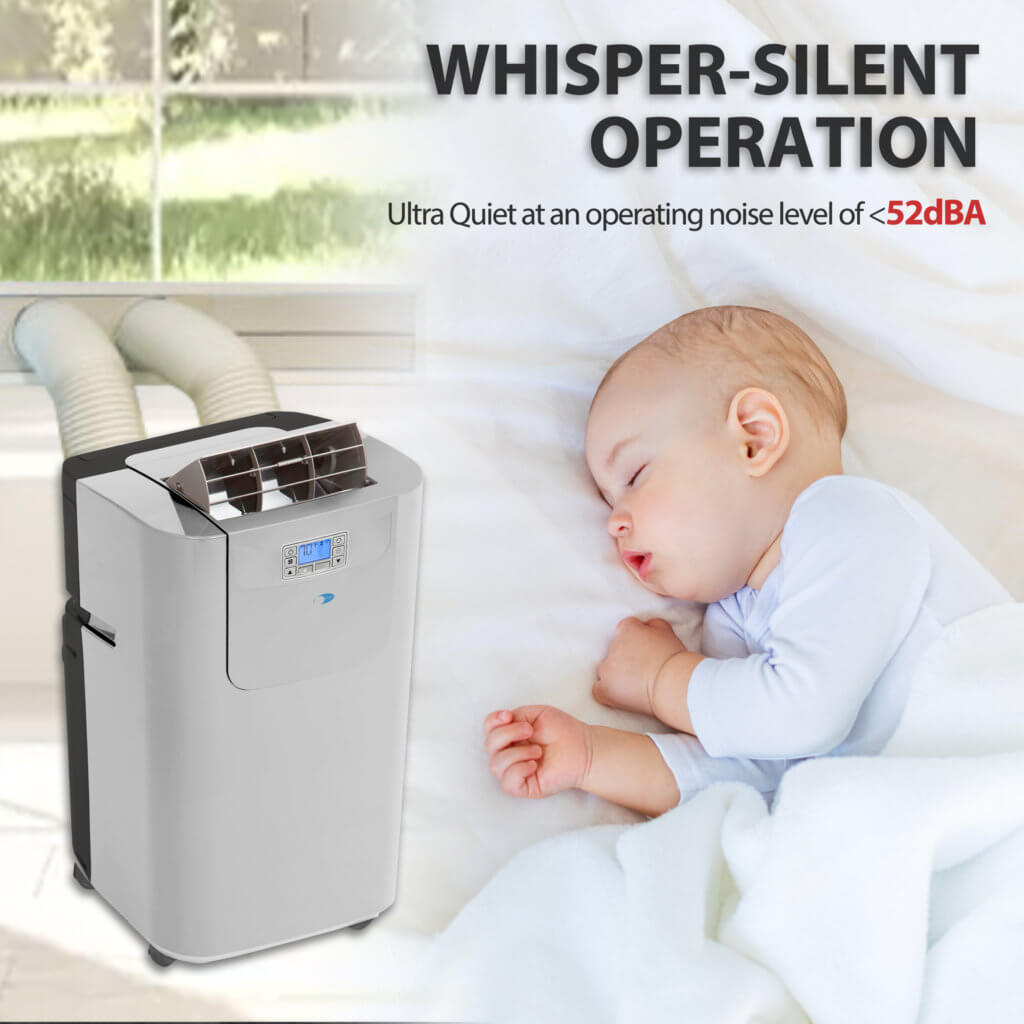

Noise level (dBA) - <47 low/ <52 high

Pump Feature - No

Refrigerant - R-32

Replacement Filter - ARC-CF-12SD

Replacement Hose - "small hose: ARC-EH-TYPE-S large hose: ARC-EH-TYPE-L"

Storage Bag - Yes

Temperature Range - 61°F – 89°F

Unit Dimensions - 17" W x 16" D x 29.5" H

Window Kit Length - 6.5" W x 20" (min)/ 56" (max) L

Upper Gravity Drain Port - Yes

● Silver color
● 12000 BTU Cooling (ASHRAE-128 Standard) / 7000 BTU (DOE Standard)
● Refrigerant: R32
● Lead free RoHS compliant components
● Patented auto drain function fully exhausts all condensate automatically in most environments
● Three operational modes: Cool, Dehumidify, and Fan
● Digital and remote control
● LCDI (Leakage-Current Detection and Interruption) plug
● Dehumidifying Capacity: 82 Pts / day
● Upper and lower drain ports for continuous operation
● Designed to provide quiet and efficient cooling to any room, with no permanent installation
● 3 speed fan with 2-way directional air louvers
● Equipped with Carbon air filter and washable pre-filter
● Full thermostatic control (61°F – 89°F)
● Casters for easy mobility
● 24 hour programmable timer
● Noise level (dBA): <47 low/ <52 high
● Auto restart after power outage
● Storage cover bag with pocket
● Extendable exhaust hose (up to 60″)
● Upgraded Plastic window kit included
● Large Exhaust Hose: 5.9″ diameter
● Large Hose Connector: 5.9″ diameter with 5.0″ diameter reducer
● Small Intake Hose: 5.0″ diameter
● Small Hose Connector: 5.0″ diameter
● Fixture and Window Kit: 5.0″ diameter
● Window Kit: 6.5″ W x 20″ (min)/ 56″ (max) L
● Air Flow (at high speed): 330m3/h / 194CFM
● Maximum cooling power consumption: 1200W  / 10.5A
● Power supply: 115 V / 60Hz / 1 Phase
● Unit dimensions: 17″ W x 16″ D x 29.5″ H
● Package dimensions: 19″ W x 18″ D x 35″ H
● Net weight: 68 lbs
● Gross weight: 79 lbs
● UL listed
● UPC 850956003880

*This unit comes with one year warranty and three year warranty on the compressor.
