Additional Information
ASHRAE BTU: 12,000 BTU
SACC BTU: 7,000 BTU
Color: Silver
Coverage Sq. Ft. 400 sq. ft.
Dehumidifying Capacity: 82 pints/day
Exhaust Hose Length: Max. 60"
Replacement Window Kit: ARC-WK-DUALN
Fan Speed: 3 speed
Filter Type: Carbon air filter and washable pre-filter
Heat Mode: No

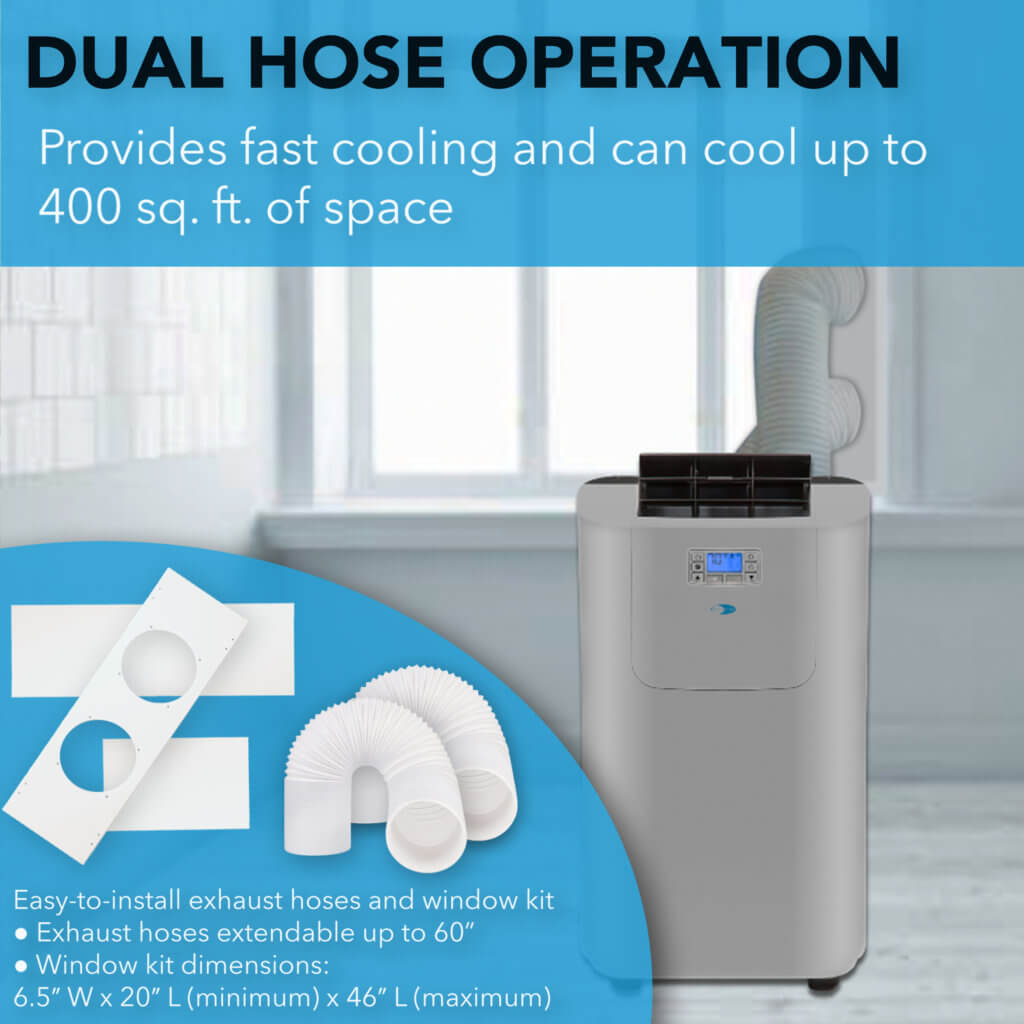

Hose System: Dual Hose
Louver Type: 2-way directional air louvers
Maximum Power Consumption: 1200W / 10.5A
Noise level (dBA): <47 low/ <52 high
Pump Feature: No
Refrigerant: R-32
Replacement Filter: ARC-CF-12SD
Replacement Hose: "small hose: ARC-EH-TYPE-S large hose: ARC-EH-TYPE-L"
Storage Bag: Yes
Temperature Range: 61°F – 89°F
Unit Dimensions: 17" W x 16" D x 29.5" H
Window Kit Length: 6.5" W x 20" (min)/ 56" (max) L
Upper Gravity Drain Port: Yes
Features & Specifications
● Silver color
● 12000 BTU Cooling (ASHRAE-128 Standard) / 7000 BTU (DOE Standard)
● Refrigerant: R32
● Lead free RoHS compliant components
● Patented auto drain function fully exhausts all condensate automatically in most environments
● Three operational modes: Cool, Dehumidify, and Fan
● Digital and remote control
● LCDI (Leakage-Current Detection and Interruption) plug
● Dehumidifying Capacity: 82 Pts / day
● Upper and lower drain ports for continuous operation
● Designed to provide quiet and efficient cooling to any room, with no permanent installation
● 3 speed fan with 2-way directional air louvers

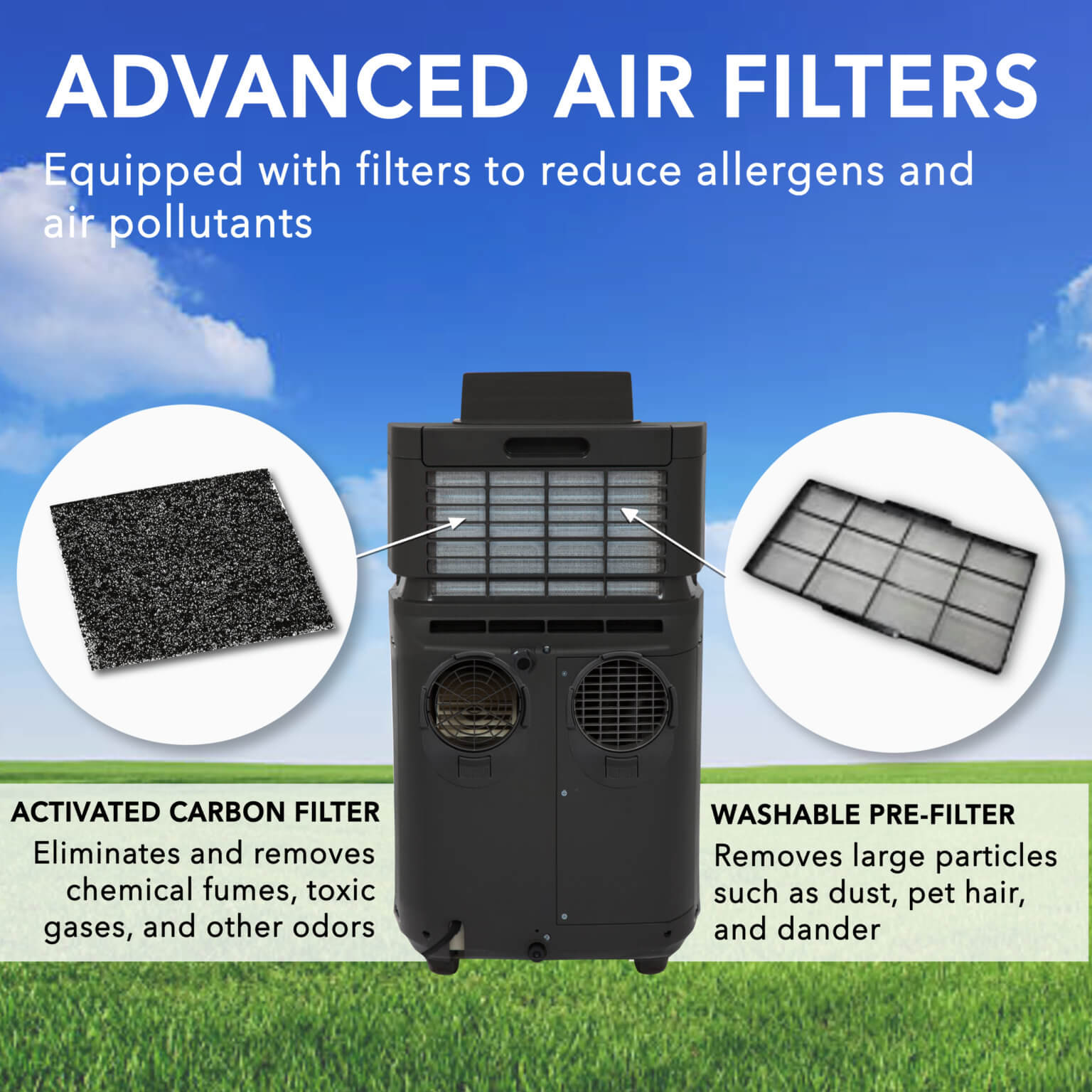

● Equipped with Carbon air filter and washable pre-filter
● Full thermostatic control (61°F – 89°F)
● Casters for easy mobility
● 24 hour programmable timer

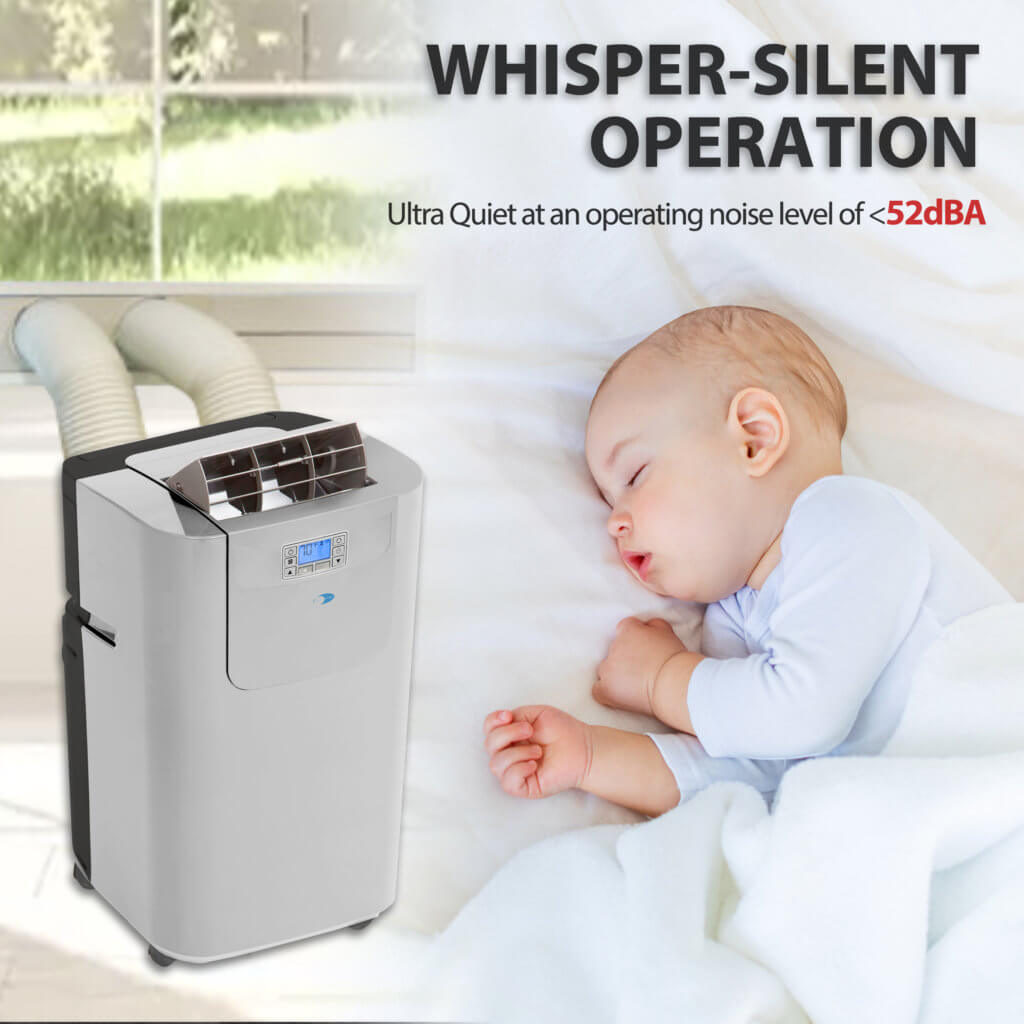

● Noise level (dBA): <47 low/ <52 high
● Auto restart after power outage
● Storage cover bag with pocket
● Extendable exhaust hose (up to 60″)
● Upgraded Plastic window kit included
● Large Exhaust Hose: 5.9″ diameter
● Large Hose Connector: 5.9″ diameter with 5.0″ diameter reducer
● Small Intake Hose: 5.0″ diameter
● Small Hose Connector: 5.0″ diameter
● Fixture and Window Kit: 5.0″ diameter
● Window Kit: 6.5″ W x 20″ (min)/ 56″ (max) L
● Air Flow (at high speed): 330m3/h / 194CFM
● Maximum cooling power consumption: 1200W / 10.5A
● Power supply: 115 V / 60Hz / 1 Phase

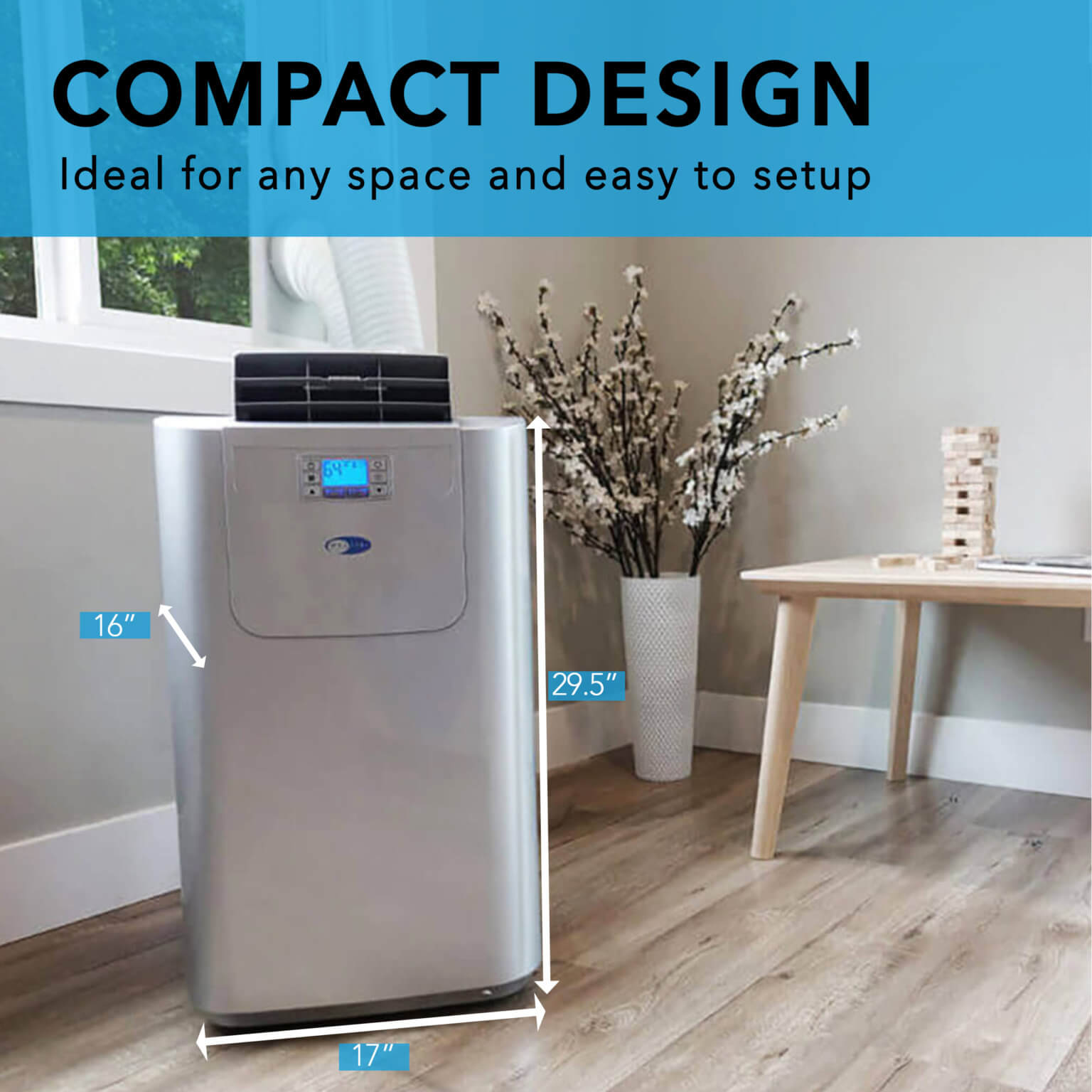

● Unit dimensions: 17″ W x 16″ D x 29.5″ H
● Package dimensions: 19″ W x 18″ D x 35″ H
● Net weight: 68 lbs
● Gross weight: 79 lbs
● UL listed
● UPC 850956003880
*This unit comes with one year warranty and three year warranty on the compressor.
User Manual
Accessories
Intake / Exhaust hoses: Based on the version of the portable air conditioner you have, you may need a 5.0″ or 5.9″ diameter hose(s) and/or connector(s) listed below. Please make sure to measure your existing hose(s) before ordering additional accessories.
NOTE: Please note that we do not recommend extending the exhaust hose(s) more than 9 feet long.
ARC-EH-TYPE-S
(Whynter Intake / Exhaust hose 5.0″ diameter)
Available at:
Ambient Stores
Amazon.com
ARC-EH-TYPE-L
(Whynter Intake / Exhaust hose 5.9″ diameter)
Available at:
Ambient Stores
Amazon.com
Hose Extender Sets: Based on the version of the portable air conditioner you have, you may need a 5.0″ or 5.9″ diameter hose connector sets listed below. Please make sure to measure your existing hose(s) before ordering additional accessories.
ARC-HCSET1-V1
(One Whynter hose connector set for 5.0″ diameter hose)
Available at:
Ambient Stores
ARC-HCSET2-V1
(Two Whynter hose connector sets for 5.0″ diameter hose)
Available at:
Ambient Stores
ARC-HCSET1-V2
(One Whynter hose connector set for 5.9″ diameter hose)
Available at:
Ambient Stores
ARC-HCSET2-V2
(Two Whynter hose connector sets for 5.9″ diameter hose)
Available at:
Ambient Stores
Window Slide Bars: ARC-WK-DUALN
Whynter Plastic Window Kit 6.5″ W x 20″ L (minimum), 46″ (maximum)
Available at:
Ambient Stores
Amazon.com
Activated Carbon Filter: ARC-CF-14S
Whynter Activated Carbon Filter
Available at:
Ambient Stores
Amazon.com
3M™ Antimicrobial Filter: ARC-FIL-3M
Whynter 3M™ Antimicrobial Filter
Available at:
Ambient Stores
Amazon.com
Storage Bag: ARC-STRGBG-A
Whynter portable air conditioner storage bag
Available at:
Ambient Stores
Amazon.com
Optional Intake Hose Pre-Filter: ARC-IHF
Whynter Intake Hose Pre-filter
Available at:
Ambient Stores
Amazon.com
Optional Lower Drain Bucket: ARC-DB
Whynter optional drain bucket for manual draining from lower drain port
Available at:
Ambient Stores
Amazon.com
Complete Accessories Set: ARC-ACC-DUSETG1-V1
Available at:
Ambient Stores
Complete Accessories Set: ARC-ACC-DUSETG1-V2
Complete Ventilation Set for ARC-14S
Available at:
Ambient Stores
