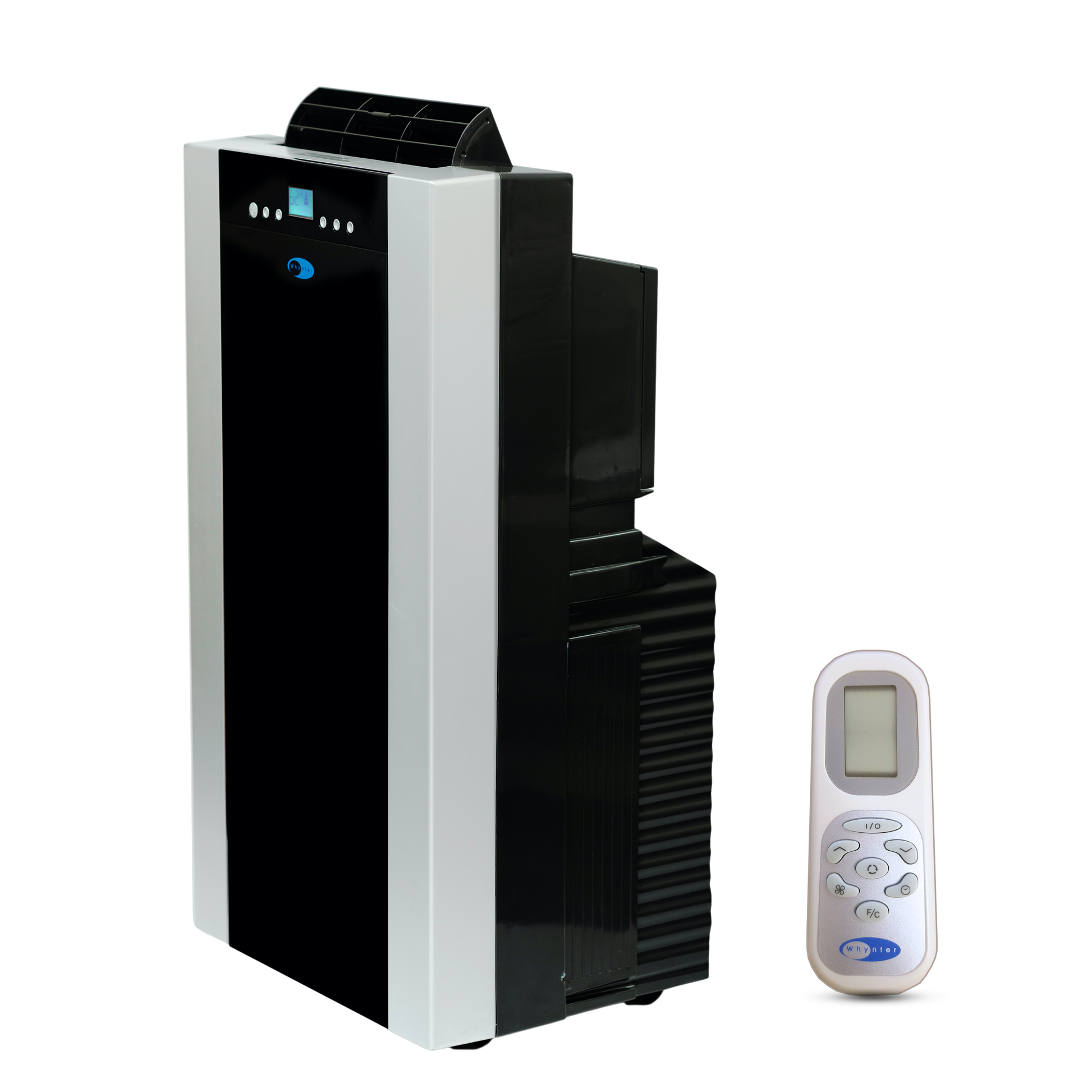

Whynter ARC-14S2 9,500 BTU Dual Hose Cooling Portable Air Conditioner

ASHRAE BTU: 14,000 BTU

SACC BTU: 9,500 BTU

Color: Black, Platinum

Coverage Sq. Ft. 500 sq. ft.

Dehumidifying Capacity: 71 pints/ day

Exhaust Hose Length: Max. 60"

Window Kit Length: 6.5" W x 20" (min)/ 46" (max) L

Fan Speed: 3 speed

Filter Type: Carbon air filter and washable pre-filter (compatible with 3M filter)

Heat Mode: No

Hose System: Dual Hose

Maximum Power Consumption: 1300 Watts / 11.6 Amps

Noise level (dBA): <51 low/ <56 high

Pump Feature: No

Refrigerant: R-32

Replacement Filter: Carbon: ARC-CF-14S 3M Antimicrobial: ARC-FIL-3M

Replacement Hose: ARC-EH-TYPE-L

Replacement Window Kit: ARC-WK-DUALN

Storage Bag: Yes

Temperature Range: 61°F – 89°F

Upper Gravity Drain Port: No

Unit Dimensions: 16" W x 19" D x 35.5" H

●  BEST OVERALL PORTABLE AIR CONDITIONER by Good Housekeeping
●  Two tone design exterior- Platinum and Black
● 14,000 BTU Cooling (ASHRAE-128 Standard) / 9,500 BTU (DOE 2017 Standard)
●  Dual Hose Operation
●  ECO-FRIENDLY CFC free GREEN R-32 refrigerant
●  Lead free RoHS compliant components
●  Patented auto drain function fully exhausts all condensate automatically in most environments
●  Three Operational Modes: Air conditioner, fan or dehumidifier
●  Digital and remote control
●  LCDI (Leakage-Current Detection and Interruption) plug
●  Dehumidifying Capacity: 71 Pts / day
●  Designed to provide quiet and efficient cooling to any room, with no permanent installation
●  3 fan speeds
●  Activated carbon air filter and washable pre-filter
●  Full thermostatic control (61°F – 89°F)
●  Casters for easy mobility
●  24 hour programmable timer
●  Noise Level (dBA): <51 low/ <56 high
●  Auto restart after power outage
● Storage cover bag with pocket
●  Extendable exhaust hose (up to 60″)
●  Upgraded Plastic window kit included
●  Window Kit Dimension: 6.5″ W x 20″ L (minimum), 46″ (maximum)
● Exhaust/ Intake Hose: 5.9″ diameter
● Hose Connectors: 5.9″ diameter with 5.0″ diameter reducer
● Fixture and Window Kit: 5.0″ diameter
● Window Kit: 6.5″ W x 20″ (min)/ 56″ (max) L
●  Refrigerant: R-32/16.5oz(468g)
●  Air Flow (at high speed): 430 m3/h / 253 CFM
●  Maximum Power Consumption: 1300 W  / 11.6 A
●  Power Supply: 115 V / 60Hz / 1 Phase
●  Unit Dimensions: 16″ W x 19″ D x 35.5″ H
● Package Dimensions: 21″ W x 19″ D x 46″ H
●  Net Weight: 73 lbs
●  Gross Weight: 100 lbs
●  UL listed
●  UPC: 850014459895

*This unit comes with one year warranty and a three-year warranty on the compressor.

User Manual & Recipe Guide

Video Link

Intake / Exhaust hoses: Based on the version of the portable air conditioner you have, you may need a 5.0″ or 5.9″ diameter hose(s) and/or connector(s) listed below. Please make sure to measure your existing hose(s) before ordering additional accessories.

NOTE: Please note that we do not recommend extending the exhaust hose(s) more than 9 feet long.

ARC-EH-TYPE-S
(Whynter Intake / Exhaust hose 5.0″ diameter)
Available at:
Ambient Stores
Amazon.com

ARC-EH-TYPE-L
(Whynter Intake / Exhaust hose 5.9″ diameter)
Available at:
Ambient Stores
Amazon.com

Hose Extender Sets: Based on the version of the portable air conditioner you have, you may need a 5.0″ or 5.9″ diameter hose connector sets listed below. Please make sure to measure your existing hose(s) before ordering additional accessories.

ARC-HCSET1-V1
(One Whynter hose connector set for 5.0″ diameter hose)
Available at:
Ambient Stores

ARC-HCSET2-V1
(Two Whynter hose connector sets for 5.0″ diameter hose)
Available at:
Ambient Stores

ARC-HCSET1-V2
(One Whynter hose connector set for 5.9″ diameter hose)
Available at:
Ambient Stores

ARC-HCSET2-V2
(Two Whynter hose connector sets for 5.9″ diameter hose)
Available at:
Ambient Stores

Window Slide Bars: ARC-WK-DUALN
Whynter Plastic Window Kit 6.5″ W x 20″ L (minimum), 46″ (maximum)
Available at:
Ambient Stores
Amazon.com

Activated Carbon Filter: ARC-CF-14S
Whynter Activated Carbon Filter
Available at:
Ambient Stores
Amazon.com

3M™ Antimicrobial Filter: ARC-FIL-3M
Whynter 3M™ Antimicrobial Filter
Available at:
Ambient Stores
Amazon.com

Storage Bag: ARC-STRGBG-A
Whynter portable air conditioner storage bag
Available at:
Ambient Stores
Amazon.com

Optional Intake Hose Pre-Filter: ARC-IHF
Whynter Intake Hose Pre-filter
Available at:
Ambient Stores
Amazon.com

Optional Lower Drain Bucket: ARC-DB
Whynter optional drain bucket for manual draining from lower drain port
Available at:
Ambient Stores
Amazon.com

Complete Accessories Set: ARC-ACC-DUSETG1-V1
Available at:
Ambient Stores

Complete Accessories Set: ARC-ACC-DUSETG1-V2
Complete Ventilation Set for ARC-14S
Available at:
Ambient Stores
