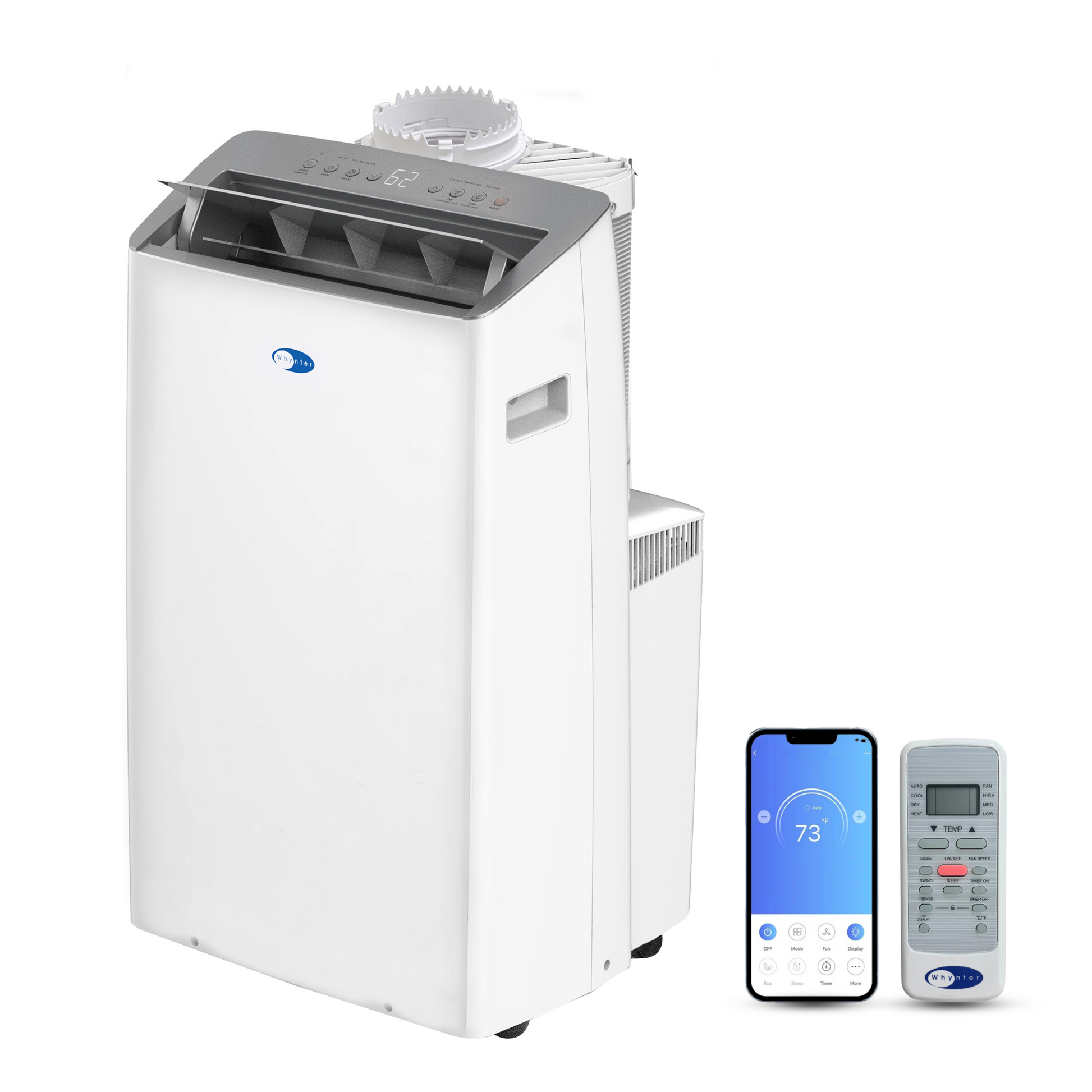

Whynter ARC-1230WNH2 Portable Air Conditioner Dual Hose Cooling & Heating

ASHRAE BTU: 14,000 BTU

SACC BTU: 12,000 BTU

Color: White

Coverage Sq. Ft. 600 sq. ft

Dehumidifying Capacity: 87 pints/day

Exhaust Hose Length: Max. 47"

Window Kit Length: Max. 49"

Fan Speed: 5 speed

Filter Type: Washable filter

Heat Mode: No

Hose System: Dual Hose (Hose-in-hose)

Louver Type: Fully automatic 80-degree flexible airflow louver

Maximum Power Consumption: 1293W / 11.9A

Noise level (dBA): <42.5 dB low / 49.5 dB medium / 56.5 dB high

Pump Feature: No

Refrigerant: R-32

Replacement Filter: N/A

Replacement Hose: ARC-INTVSBEH-WN

Replacement Window Kit: ARC-WK-TYPENEX

Storage Bag: N/A

Temperature Range: 60°F – 86°F

Upper Gravity Drain Port: Yes

Unit Dimensions: 19.5” W x 16.75” D x 32.5” H

● White color
● Cooling: 14,000 BTU (ASHRAE) / 12,000 BTU (SACC)
● Dehumidifying Capacity: 87 pints
● Refrigerant: R32
● Patented auto drain function fully exhausts all condensate automatically in most environments
● Advanced Inverter technology achieves 20% more cooling capacity and over 40% energy saving
● Optimize air distribution with a fully automatic 80-degree flexible airflow louver
● Four operational modes: Auto, Cool, Dehumidify, and Fan
● Digital display and remote control
● Smart Control (WiFi-enabled & Voice-connected)
● Control from anywhere using the NetHome Plus app through Wi-Fi
● Voice control works with Amazon Alexa or Google Home voice assistant
● Intelligent features such as the 24-hour Timer, Sleep Curve, Self-Diagnosis, Express Run Settings, and Schedules
● Innovative Hose-in-hose” design with a sealed bottom structure ensures no heat leakage
● LCDI (Leakage-Current Detection and Interruption) plug
● Upper and lower drain ports for continuous operation
● Drain Methods: Continuous Gravity and Manual
● Designed to provide quiet and efficient cooling to any room, with no permanent installation
● Fan Speed: Continuous |Auto |Low |Medium | High
● Washable air filter
● Full thermostatic control (60°F – 86°F)
● Casters for easy mobility
● 24 hour programmable timer
● Noise Level (fan speed): <42.5 dB low / 49.5 dB medium / 56.5 dB high
● Auto restart after power outage
● Extendable Hose: Length up to 47″
● Window Kit: Length up to 82”
● Air Flow (low/medium/high speed): 384 m3h, 225 CFM / 415 m3h, 244 CFM / 661 m3h, 388 CFM
● Maximum Cooling Power Consumption: 1293W / 11.9A
● Power Supply: 115 V / 60Hz / 1 Phase
● Unit Dimensions: 19.5” W x 16.75” D x 32.5” H
● Packaging Dimensions: 22” W x 18” D x 34.5” H
● Net Weight: 77.25 lbs
● Gross Weight: 88.5 lbs
● CEER: 13.8
● EER: 10.8
● UL listed
● UPC: 850014459949

*This unit comes with one year warranty and a three-year warranty on the compressor.

User Manual & Recipe Guide

Video Link

Hose: ARC-INTVSBEH-WN
(Exhaust and Intake Hose-in-Hose Subassembly)
Available at:
Ambient Stores

Window Slide Bars: ARC-WK-TYPENEX
Whynter Plastic Window Kit (9.5″ W x MIN 28″ L / MAX 82″ L)
Available at:
Ambient Stores
Amazon.com

Connectors: ARC-AIREXHSDCSMTCNNCT-6251
Air Outlet Adapter for Hung Window
Available at:
Ambient Stores

Connectors: ARC-WK-ADTR
Exhaust Connector/ Adapter for Sliding Window
Available at:
Ambient Stores

Storage Bag: ARC-STRGBG-B
Whynter portable air conditioner storage bag
Available at:
Ambient Stores

Air Filter:ARC-FIL-3MTYPEM
Available at:
Ambient Stores
Amazon.com
