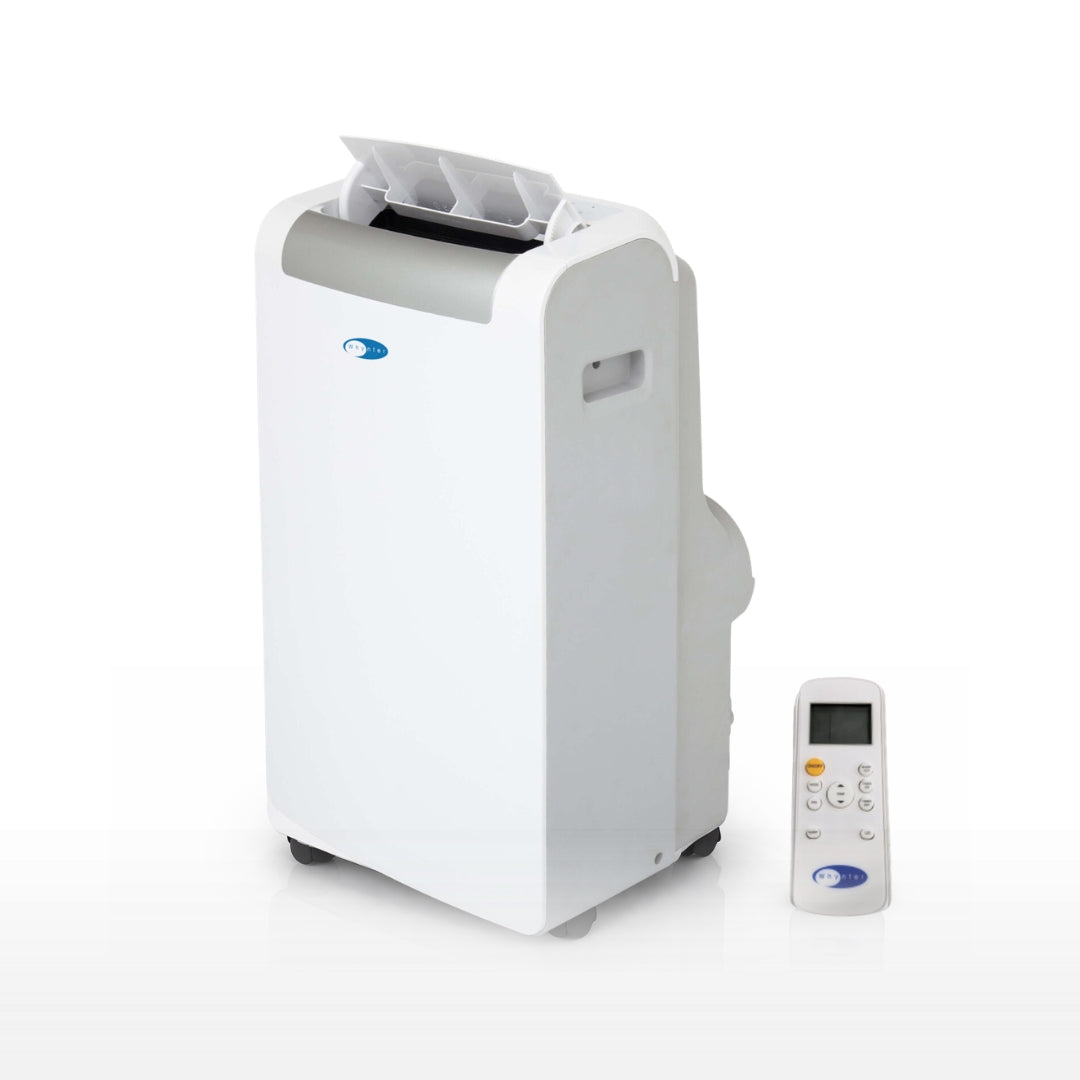

Whynter ARC-148MS 14,000 BTU Dual Hose Portable Air Conditioner with Dehumidifier & Fan – Cools Up to 500 sq. ft. (White)

ASHRAE BTU - 14,000 BTU

SACC BTU - 10,300 BTU

Color - White

Coverage Sq. Ft. - 500 sq. ft.

Dehumidifying Capacity - 71 pints/ day

Exhaust Hose Length - Max. 59"

Window Kit Length - Max. 48"

Fan Speed - 3 speed

Filter Type - 2 in 1 silver-ion coated washable pre-filter and carbon filter

Heat Mode - No

Hose System - Single Hose

Louver Type - 3-way oscillating

Maximum Power Consumption - 1300W/11.3A

Noise level (dBA) - 57.5 high / 54.5 med / 53 low

Pump Feature - No

Refrigerant - R-32

Replacement Filter - Carbon: ARC-CF-TYPE-M

Replacement Hose - ARC-EH-TYPEM-14V2

Replacement Window Kit - ARC-WK-TYPEM-14V2

Storage Bag - N/A

Temperature Range - 62°F – 88°F

Upper Gravity Drain Port - Yes

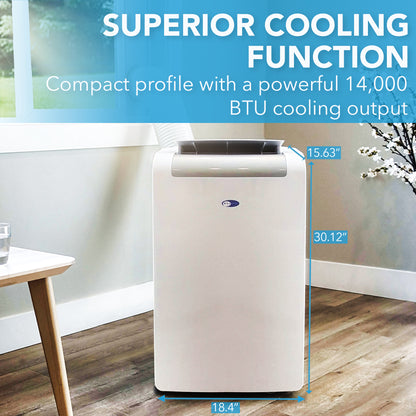

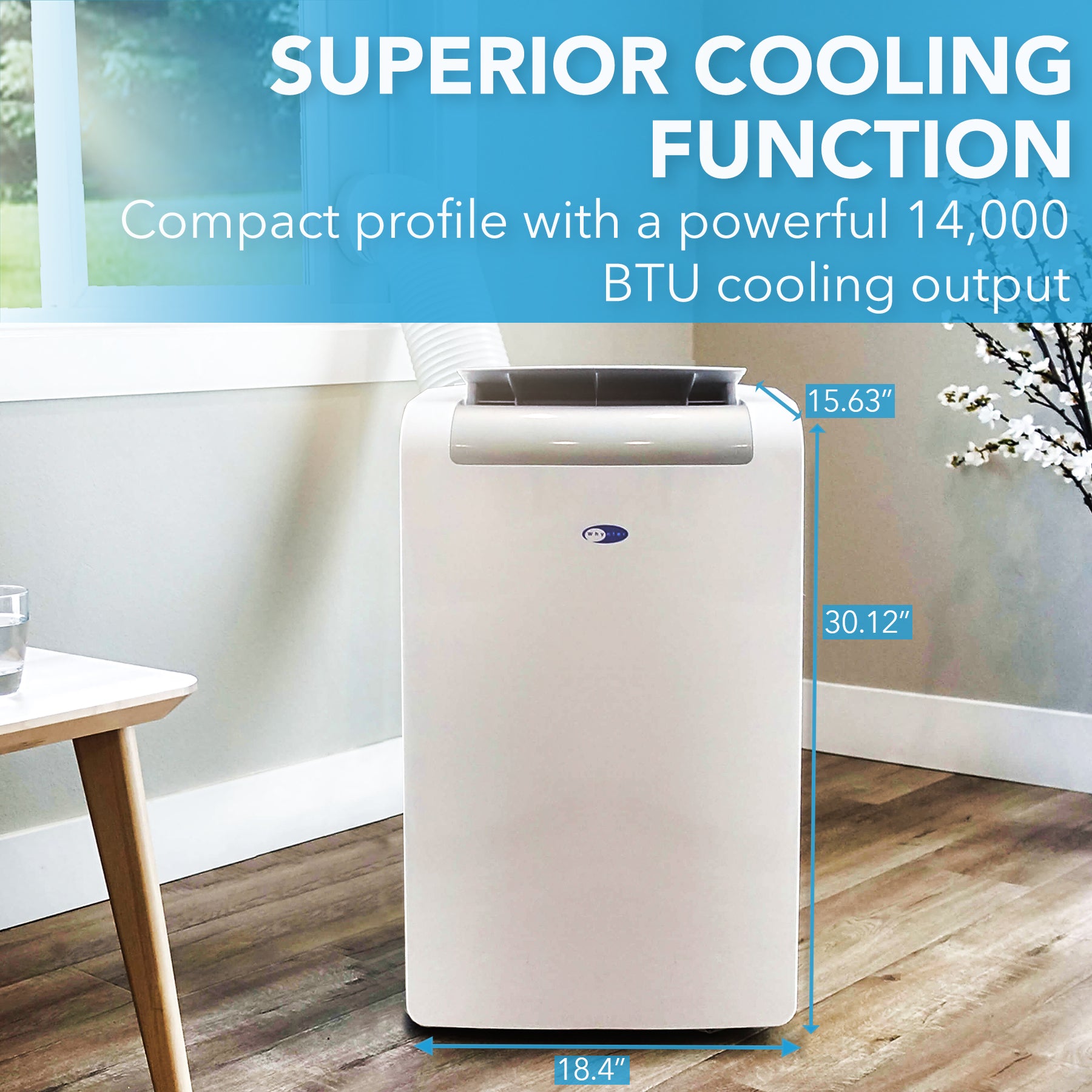

Unit Dimensions - 18.4" W x 15.63" D x 30.12" H

● 14,000 BTU cooling capacity (SACC 10,300 BTU)
● Sleek and modern all white design

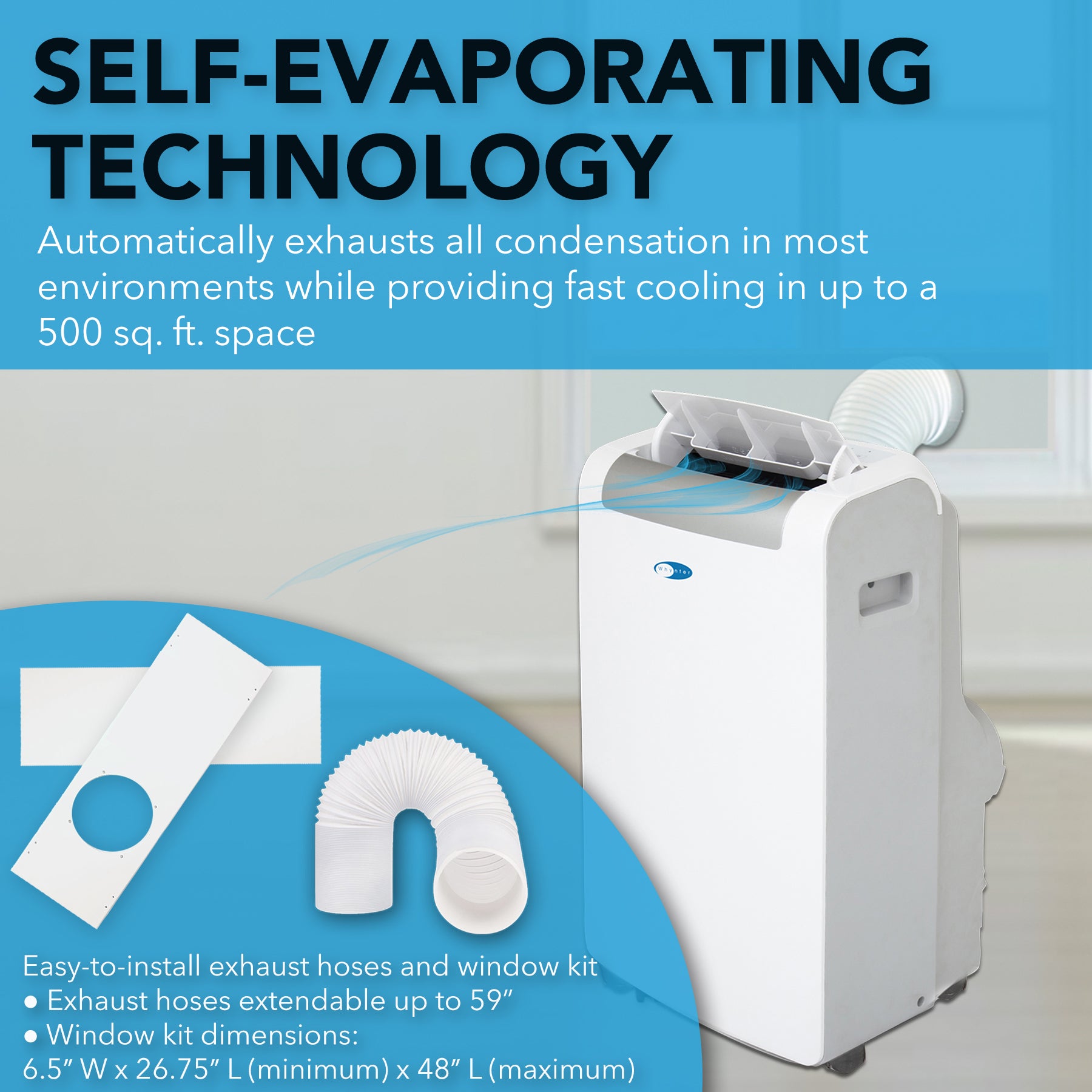

● Self-Evaporative System – exhausts most or all condensate under average ambient conditions
● R-32 refrigerant
● Lead free RoHS compliant components
● Four operational modes: Auto, Air conditioner, Fan or Dehumidifier
● Remote control with full functionality
● LCDI (Leakage-Current Detection and Interruption) plug
● Dehumidifying Capacity: 71 Pts / day
● Drain Methods: Continuous and Manual
● Upper and lower direct drain option for continuous operation without excess condensate accumulation
● 3 speed fan with directional air discharge louver

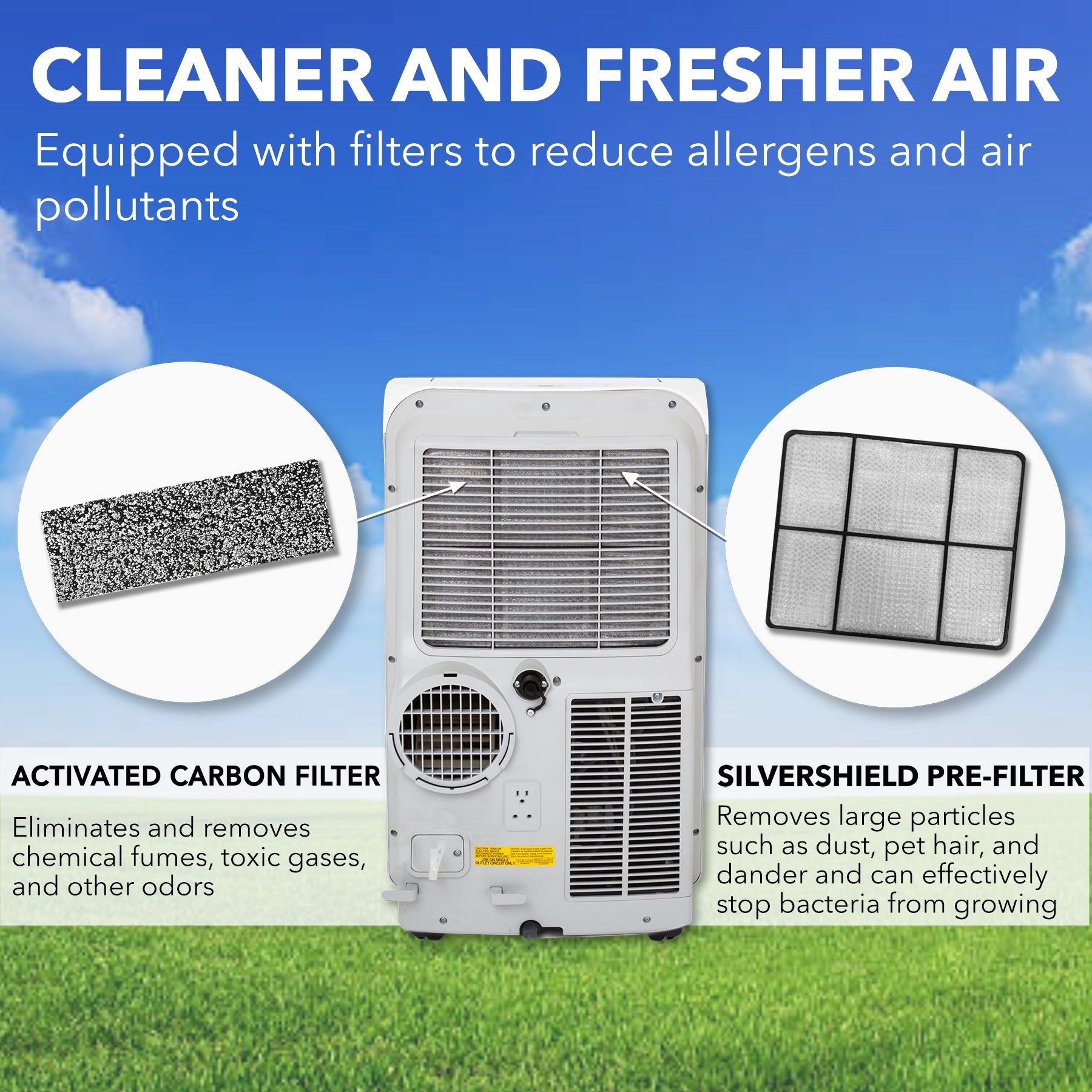

● Activated Carbon Air Filter and Washable Silver-Shield Pre-Filter

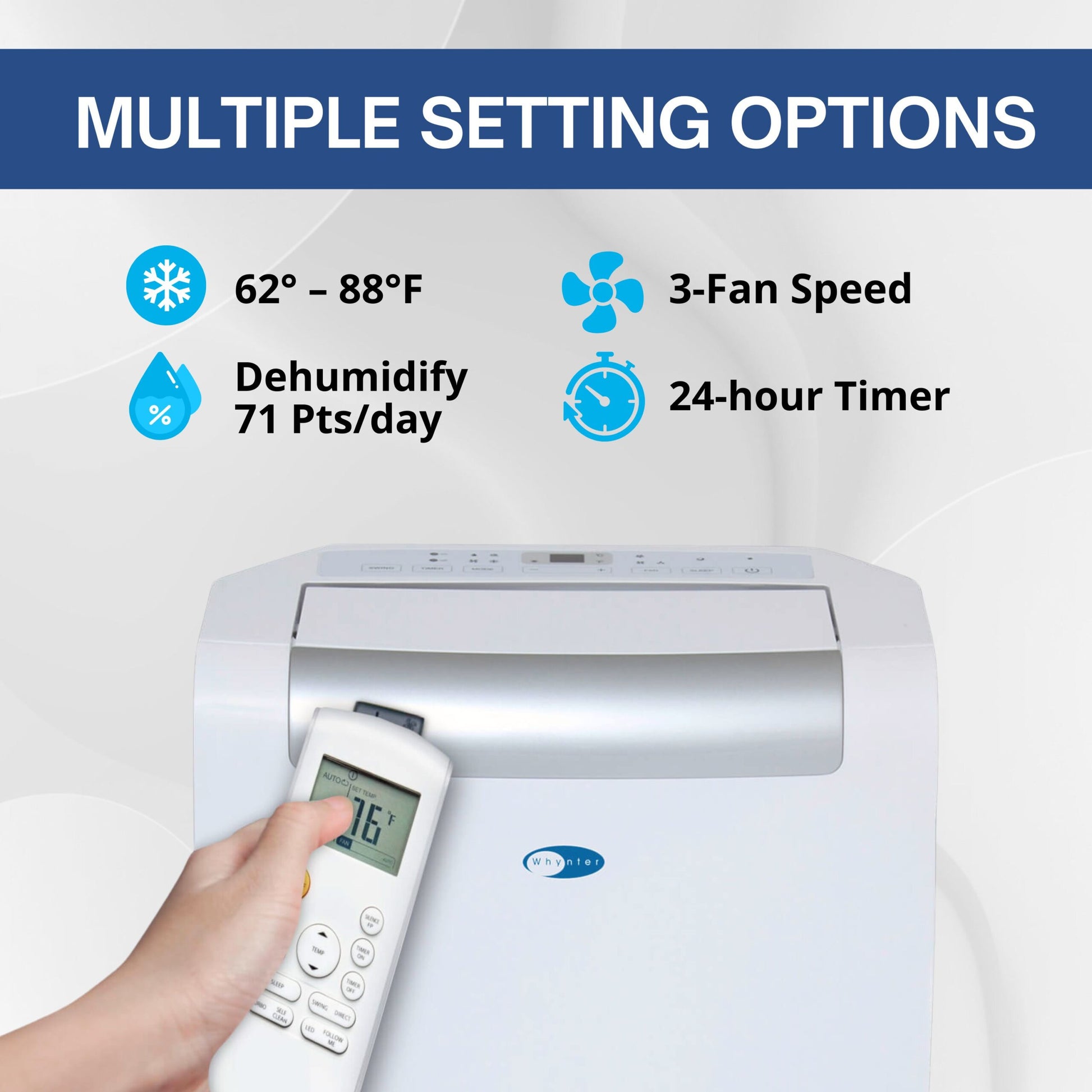

● Adjustable digital thermostat control range from 62° – 88°F
● Casters for easy mobility
● 24 hour programmable timer
● Noise level (dBA): 57.5 high/ 54.5 med/ 53 low
● Auto restart after power outage
● Extendable exhaust hose (up to 59″)
● Upgraded Plastic window kit included
● Refrigerant: R-32
● Air Flow (at high speed): 497m3/h / 292CFM
● Maximum power consumption: 1300W/ 11.3A
● Power supply: 115 V / 60Hz
● Unit dimensions: 18.4″ W x 15.63″ D x 30.12″ H
● Package dimensions: 21” W x 18″ D x 35″ H
● Net weight: 73 lbs
● Gross weight: 82 lbs
● UL listed
● UPC 850956003699

*This unit comes with one year warranty and three year warranty on the compressor.
