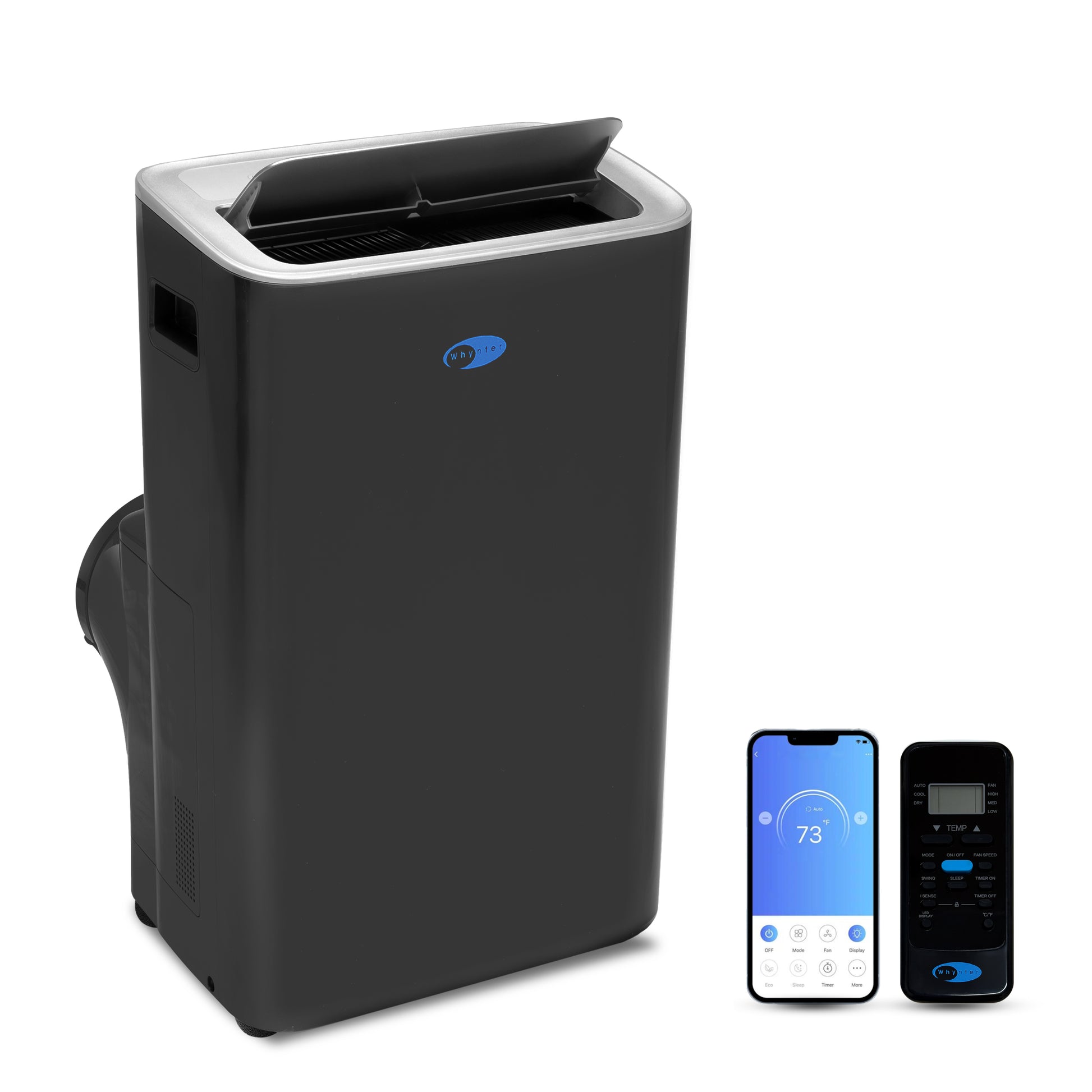

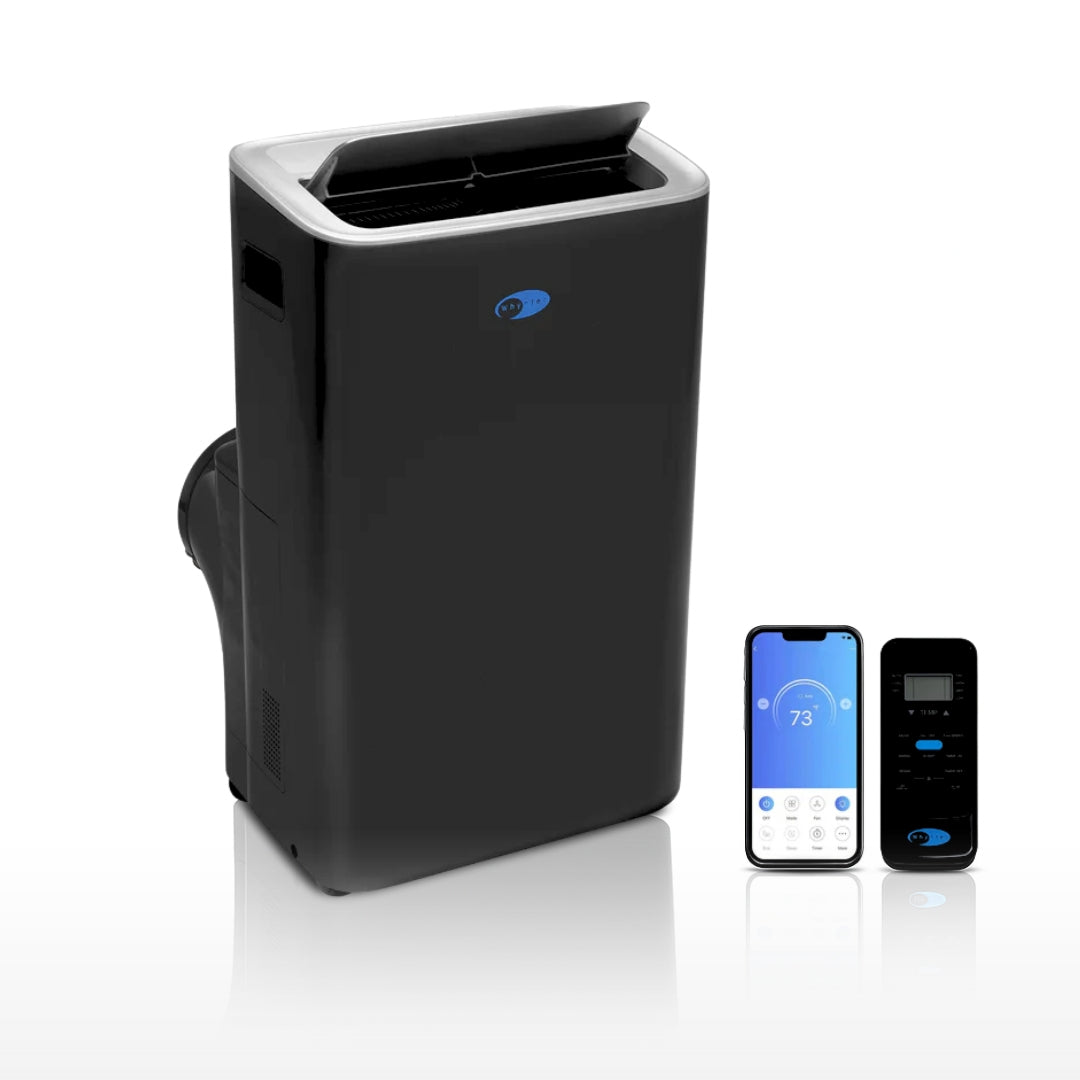

Whynter ARC-1280MX 12,000 BTU Portable Air Conditioner – Antimicrobial Air Filter, Compact Cooling for Rooms Up to 400 Sq Ft

ASHRAE BTU: 12,000 BTU

SACC BTU: 10,000 BTU

Color: Black

Coverage Sq. Ft. 500 sq. ft.

Dehumidifying Capacity: 96.8 pints/day

Exhaust Hose Length: Max. 60"

Window Kit Length: Max. 82"

Fan Speed: 5 speed

Filter Type: Washable air filter & carbon filter

Heat Mode: No

Hose System: Dual Hose

Louver Type: Fully automatic 80-degree flexible airflow louver

Maximum Power Consumption: 1293W / 11.9A, 1212W / 11.9A

Noise Level (dBA): 50/53/56

Pump Feature: No

Refrigerant: R-32

Replacement Filter: N/A

Replacement Hose: ARC-EXHAHOSE-439

Replacement Window Kit: ARC-WK-721

Storage Bag: N/A

Temperature Range: 60°F – 86°F

Upper Gravity Drain Port: Yes

Unit Dimensions: 17.36" W x 15.63" D x 28.62" 0

● Black color
● Cooling: 12000 BTU | 10000 SACC
● Dehumidifying Capacity: 96.8 pints
● Refrigerant: R32
● Patented auto drain function fully exhausts all condensate automatically in most environments
● Advanced Inverter technology achieves 20% more cooling capacity and over 40% energy saving
● Optimize air distribution with a fully automatic 80-degree flexible airflow louver
● Four operational modes: Auto, Cool, Dehumidify, and Fan
● Digital display and remote control
● Smart Control (WiFi-enabled & Voice-connected)
● Control from anywhere using the NetHome Plus app through Wi-Fi
● Voice control works with Amazon Alexa or Google Home voice assistant
● Intelligent features such as the 24-hour Timer, Sleep Curve, Self-Diagnosis, Express Run Settings, and Schedules
● LCDI (Leakage-Current Detection and Interruption) plug
● Upper and lower drain ports for continuous operation
● Drain Methods: Continuous Gravity and Manual
● Designed to provide quiet and efficient cooling to any room, with no permanent installation
● Fan Speed: Continuous |Auto |Low |Medium | High
● Washable air filter + carbon filter
● Full thermostatic control (60°F – 86°F)
● Casters for easy mobility
● 24 hour programmable timer
● Noise level (fan speed): <50 dB low / 53 dB medium / 56 dB high
● Auto restart after power outage
● Extendable Hose: Length up to 47″
● Window Kit : Length up to 82”
● Air Flow (low/medium/high speed): 384 m3h, 225 CFM / 415 m3h, 244 CFM / 661 m3h, 388 CFM
● Maximum cooling power consumption: 1293W / 11.9A
● Power supply: 115 V / 60Hz / 1 Phase

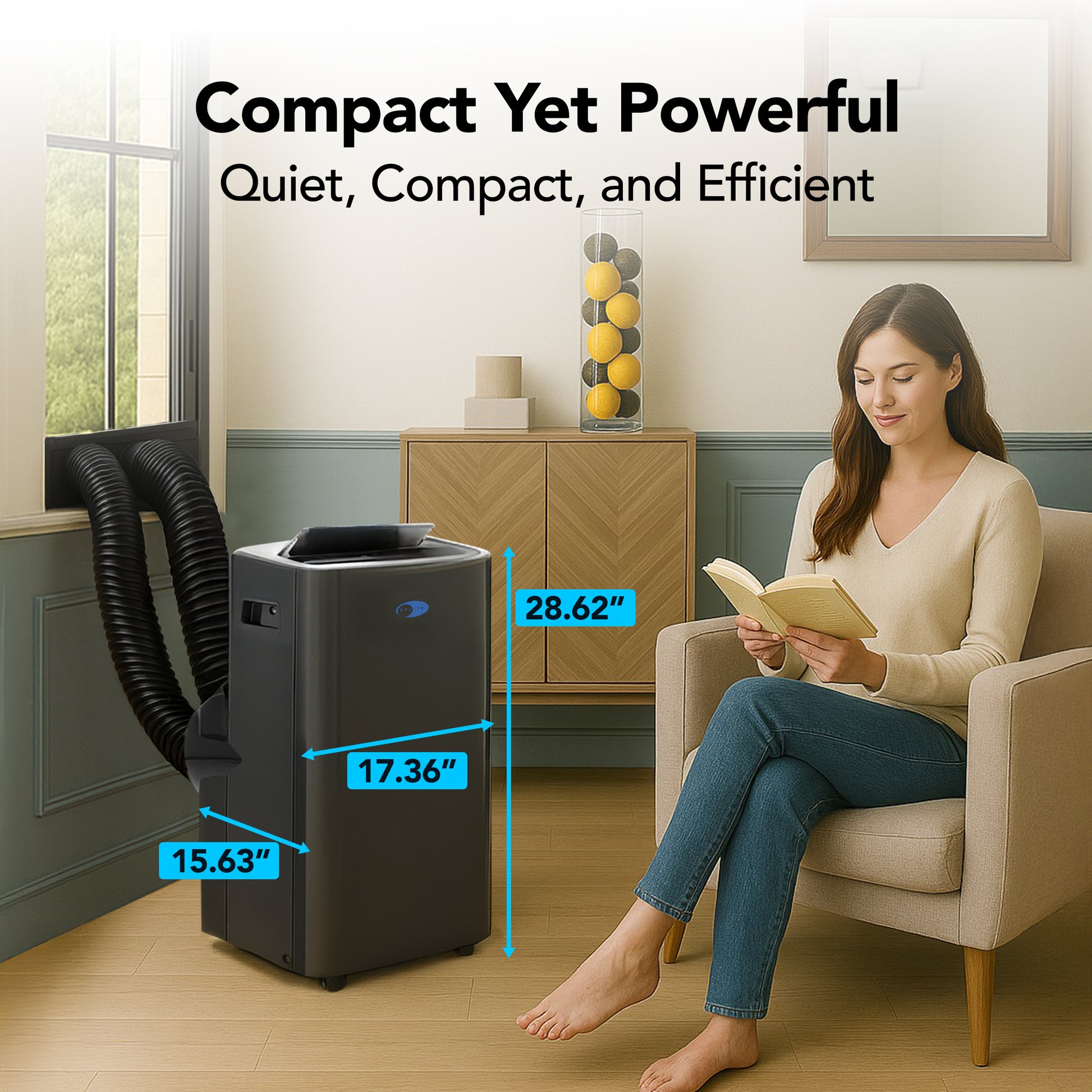

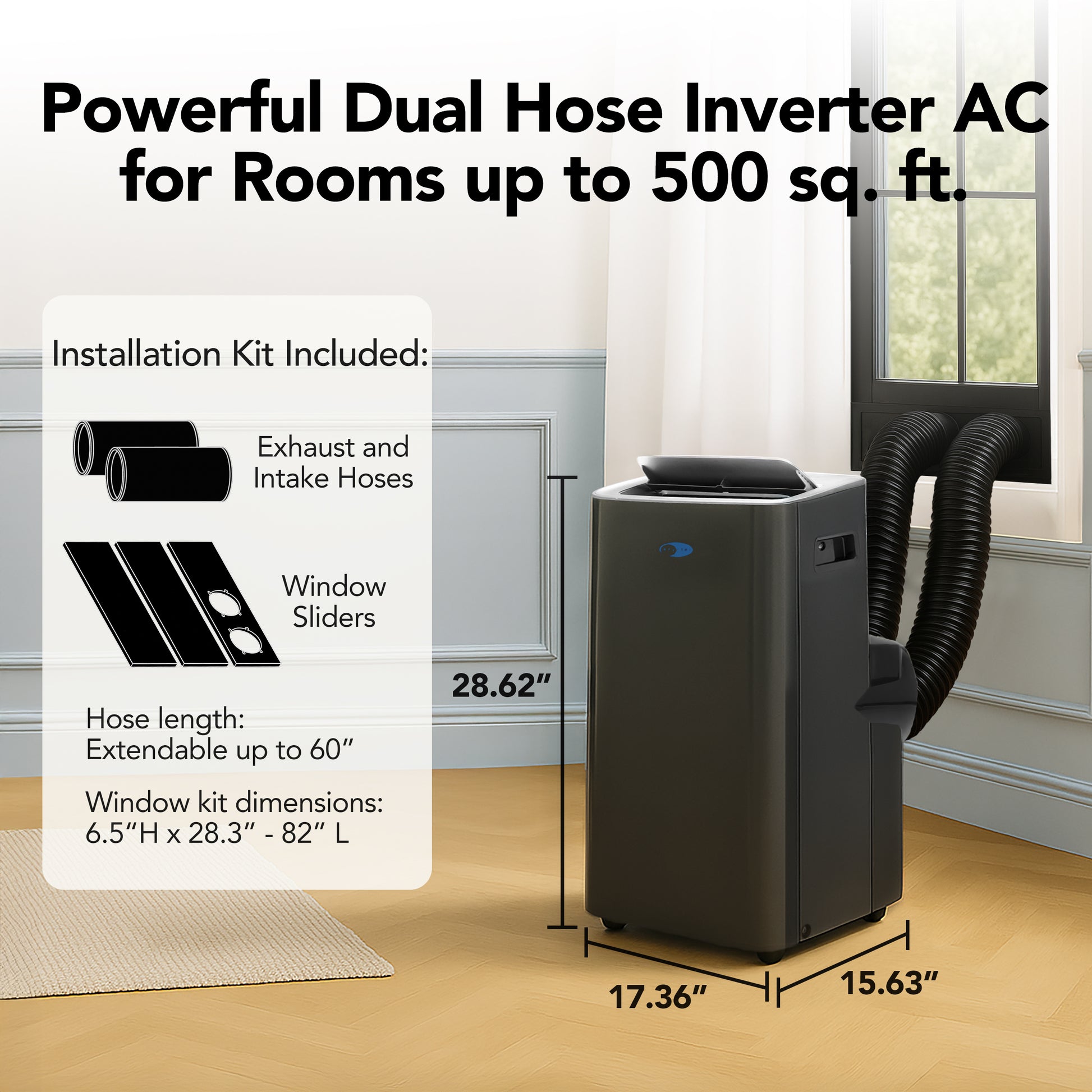

● Unit dimensions: 17.36″ W x 15.63″ D x 28.62″ H
● Packaging dimensions: 22” W x 18” D x 34.5” H
● Net weight: 55 lbs
● Gross weight: 74 lbs
● CEER: 12.1
● EER: 10.8
● UL listed
● UPC 850014459864

*This unit comes with one year warranty and a three-year warranty on the compressor.
