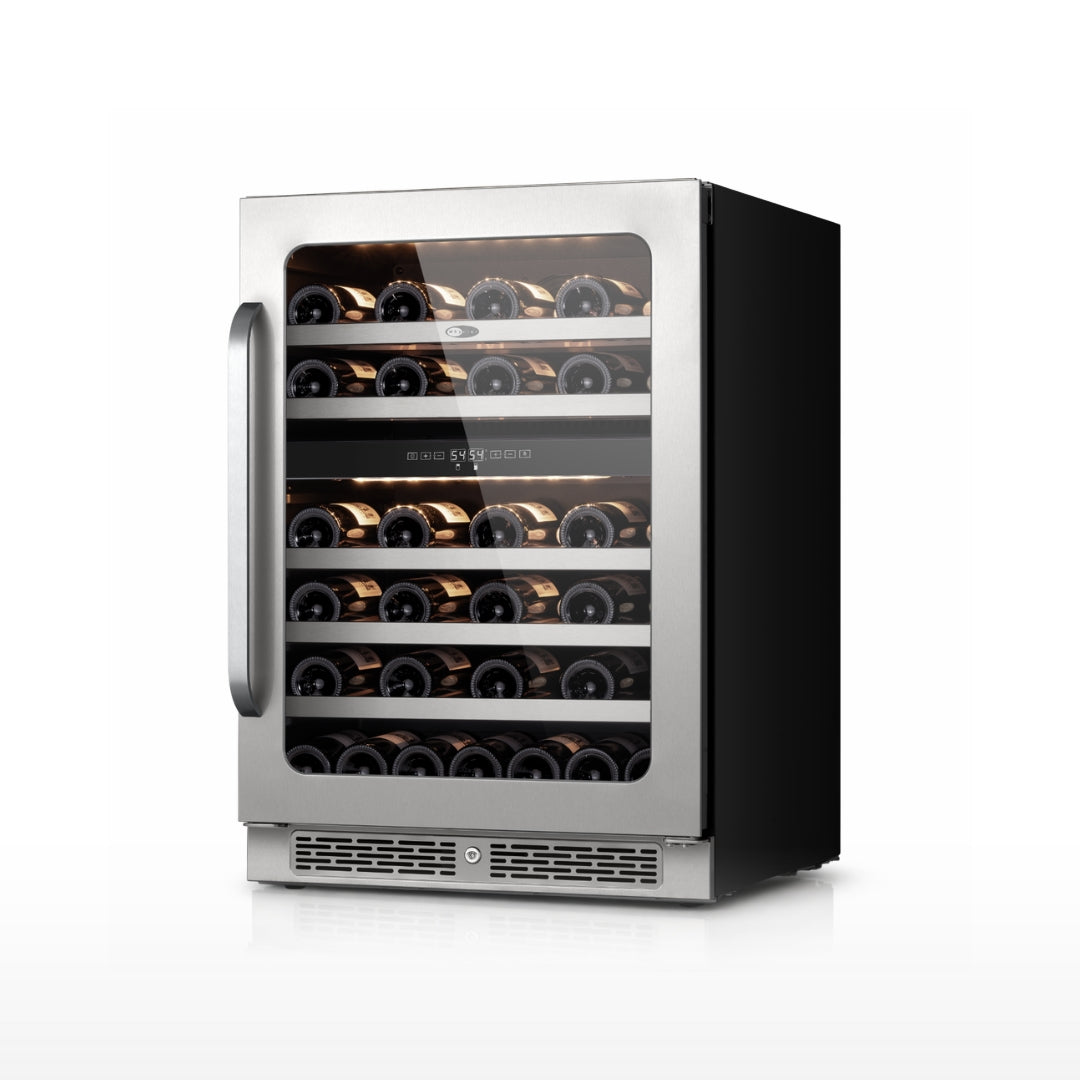

Whynter BSR-046DW 24” Built-In Dual Zone Wine Refrigerator – 46 Bottle Stainless Steel Undercounter Wine Fridge with Digital Control, Lock & UV Glass

Installation Type - Freestanding / Built-in

Bottle Capacity - 46 standard 750mL wine bottle

Cabinet Storage Capacity - 5.65 cu. ft.

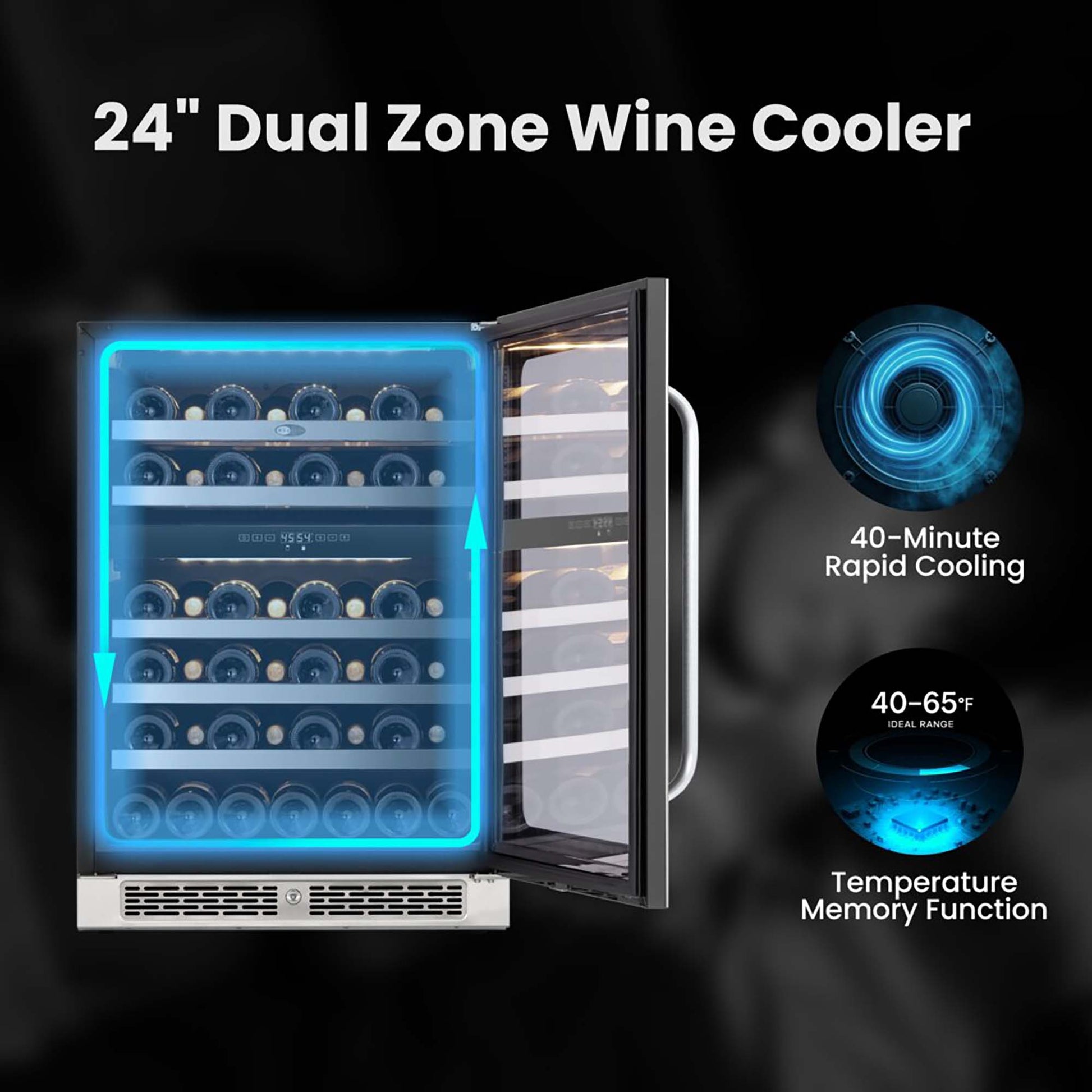

Zone Type - Dual Zone

Cooling System Type - Compressor

Seamless Door - Yes

Reversible Door - Yes

Door Lock - Security Lock and Key

Temperature Range - Upper zone: 40°F-65°F / 5°C-18°C
Lower zone: 40°F-65°F / 5°C-18°C

Celsius Option - Yes

Humidity Tray –

Refrigerant - R600a

Maximum Power Consumption - 138W / 1.2A

Unit Dimensions - 23.7"W × 23.5"D × 33.9"H

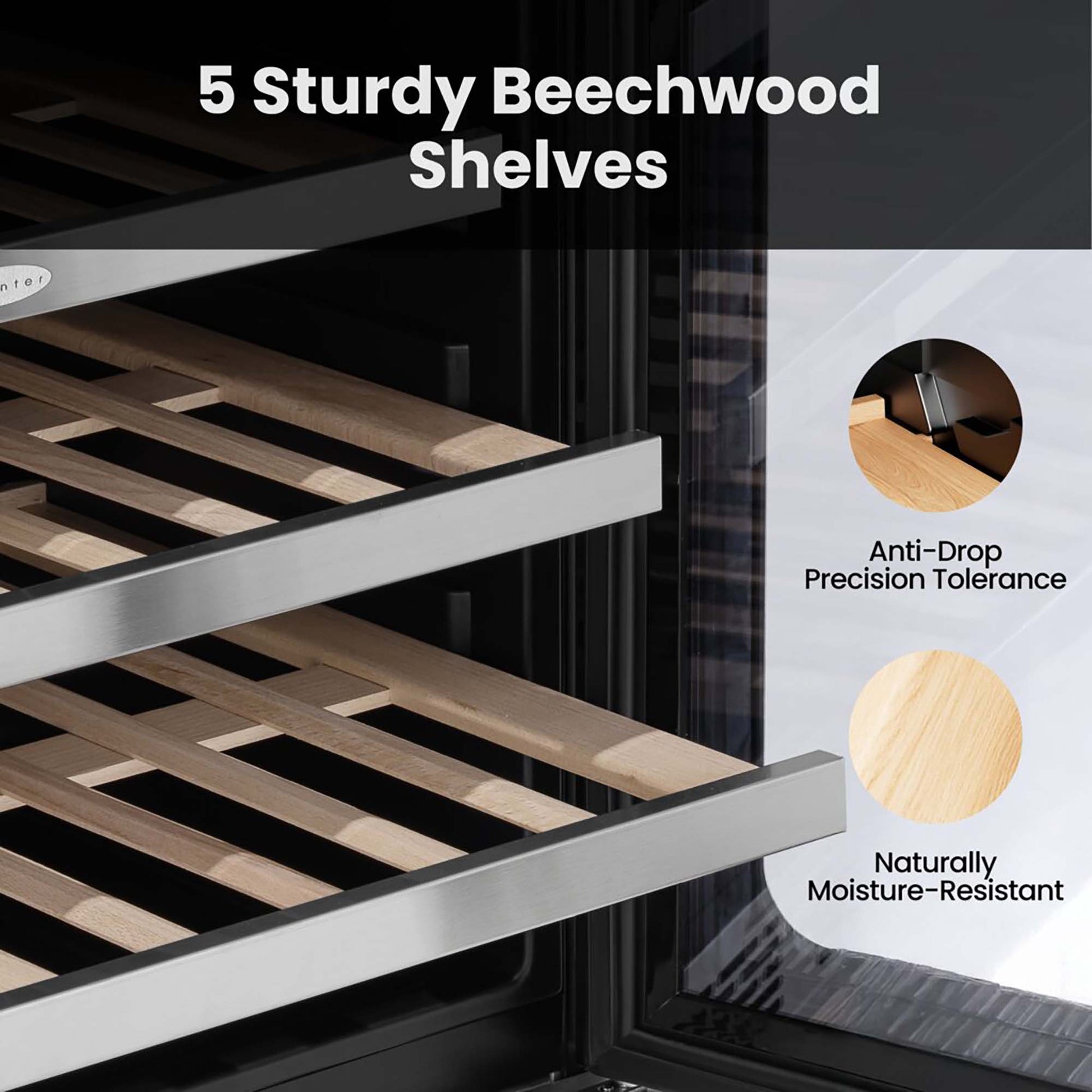

Shelf Type - 5 Beechwood Shelves (Removable)

● Capacity: 46 standard 750 mL bottles
● Cabinet Storage Capacity: 5.65 cu. ft.
● Built-in/Freestanding installation (proper clearance required)

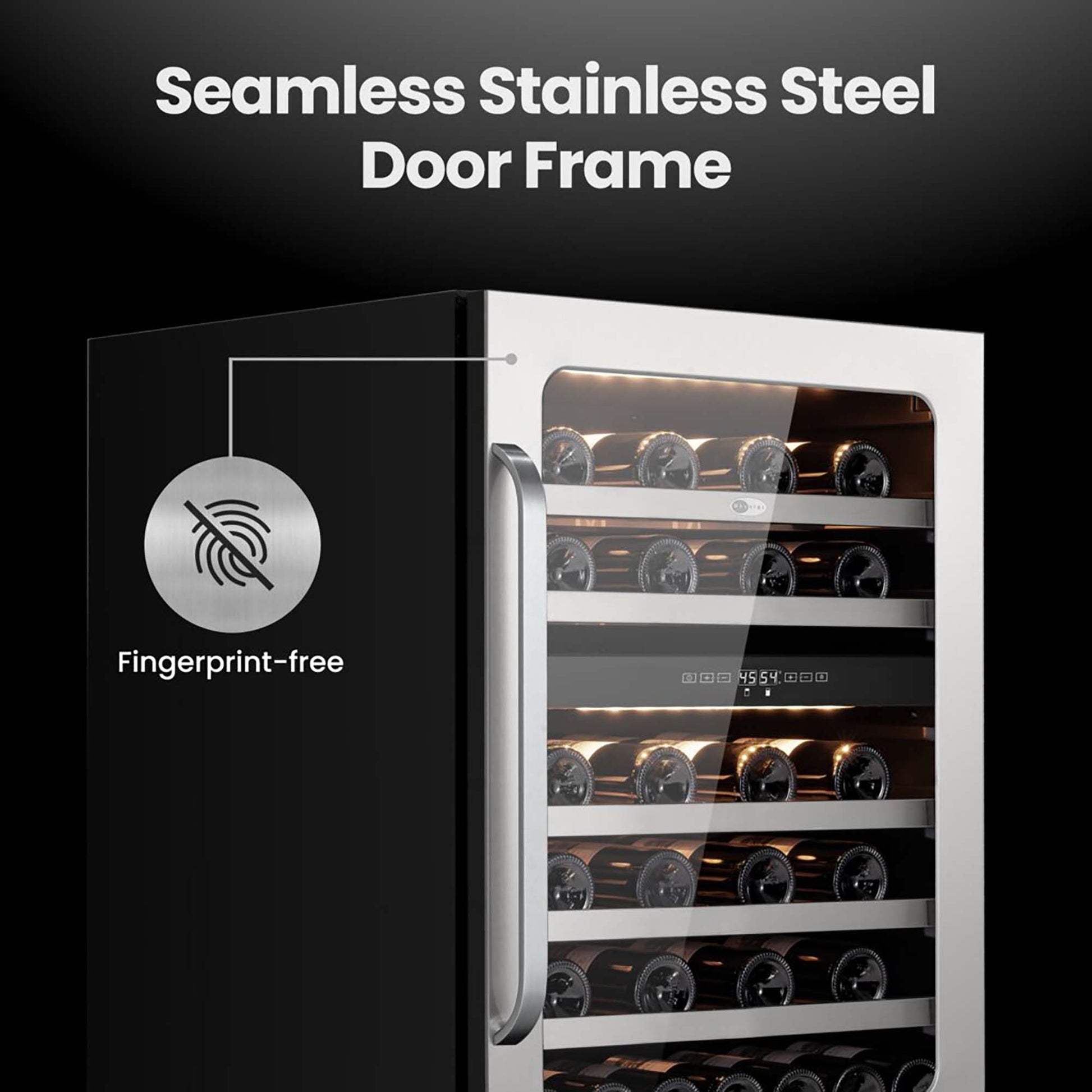

● Stainless trimmed glass door with sleek black cabinet

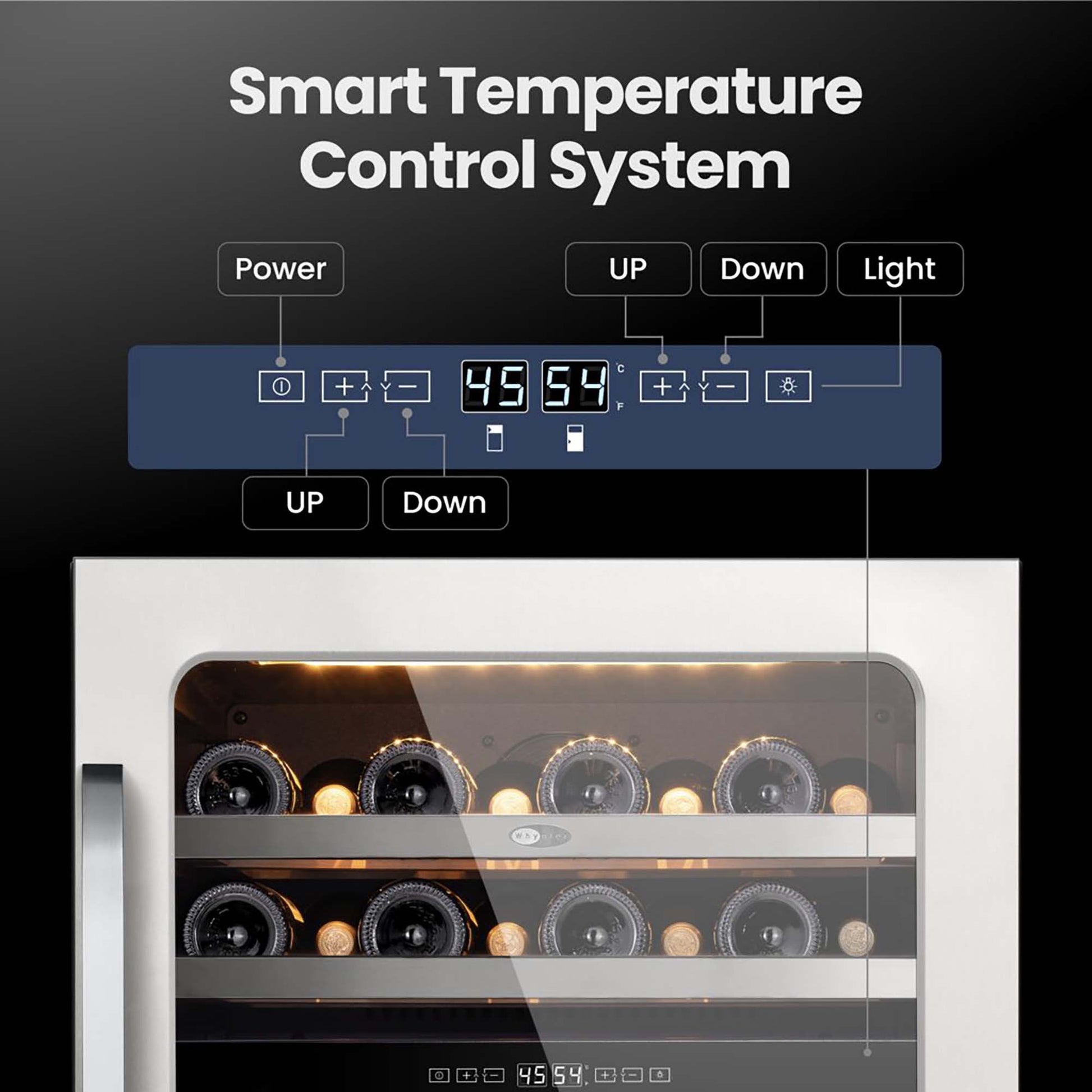

● Touch screen control with temperature range from 40°F – 65°F (5°C – 18°C)
● Environment friendly refrigerant
● Activated carbon filter eliminates odors

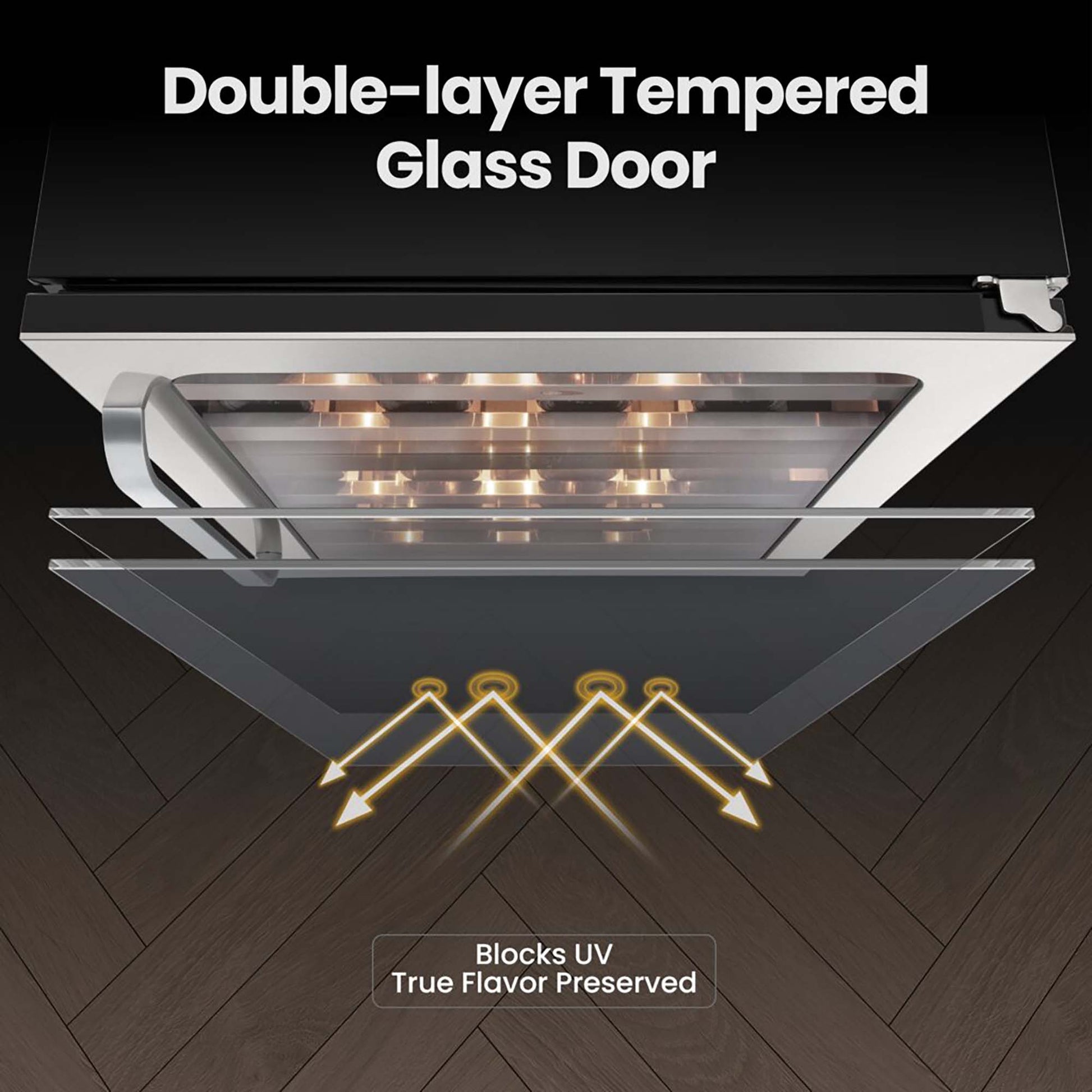

● Double tempered glass panel
● Reversible door orientation
● Soft interior LED lighting with three colors
● Equipped with activated carbon filter ensures optimum air quality and eliminates odors
● Internal fan-forced circulation for even temperature distribution throughout the cabinet
● Cylinder lock and two keys
● Fahrenheit and Celsius degree temperature indicators
● Five adjustable beechwood shelves
Uppper Zone : 16 bottles
Lower Zone : 30 bottles
● Noise Level : < 43 dB
● Voltage: 115V /60 Hz
● Power: 138 watts / 1.2 Amps
● ETL listed
● Product dimensions: 23.7″ W×23.5″ D×33.9″ H
● Package dimensions: 27.4″ W×27.4″D ×38.8″ H
● Net weight: 102.7 lbs
● Gross weight: 117.2 lbs
● UPC 850014459819

*This unit comes with one year limited warranty.

Whynter BSR-046DW Wine Refrigerator User Manual
